Original Autel TESKIT Autel Tesla Diagnostic Adapter Cables for Tesla S and X Models Work with MaxiSYS Ultra/ MS909/ MS919 Tablet

Autel TESKIT Autel Tesla Diagnostic Adapter Cables Work with MaxiSYS Tablet

Features:

1. Compatiable Tablet: Autel Maxisys Ultra, Maxisys MS909, Maxisys MS919, Ultra, 908S, 908S Pro, 906BT, 906TS, 906, Elite, 906S, 906 Pro, 906 Pro-TS, Elite II, D1 Pro
2. Supported Vehicle Model: Tesla S and X Vehicle Models
3. Functions: Enables Autel Tablet to Activate Factory Mode and Perform System Diagnostics
4. Kit Includes: Cable LAN001, cable CAN001 and cable CAN002



Functions of Each Cable:

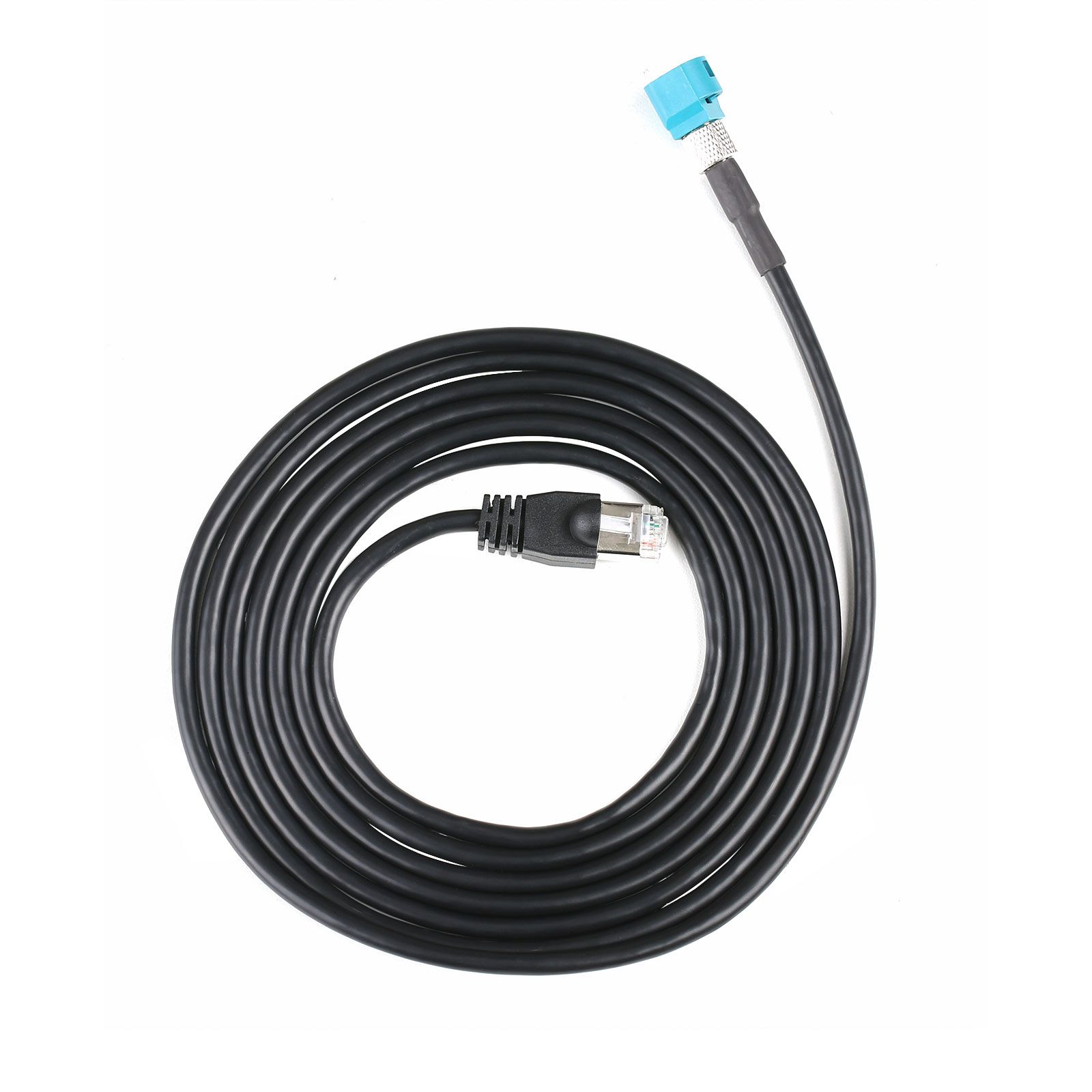

LAN001
- Connects to Tesla port X861 (located behind the instrument cluster) to activate factory mode (instrument cluster must be disassembled)
- Connects to Tesla port X863 (located below the central control screen) for diagnostics of post-2015/Sept vehicles.
- Connects to Tesla port X863 (located to the left of the instrument cluster) for diagnostics pre-2015/Sept vehicles.

CAN001
- Connects to Tesla port X437 (located below the central control screen) for diagnostics of post-2015/Sept vehicles.

CAN002
- Connects to Tesla port X437 (located below the central control screen) for diagnostics of pre-2015/Sept vehicles.

Adapter Cable	Supported Model	Model Year	Connection Port	Connection Port Location	Function
TLAN001	Model S/ Model X	All	X861	On the back of the instrument cluster	Activate Factory Mode
		After Sep 2015	X863	Below the Central Control Screen	Perform Diagnosis for Lan related Systems
		Before Sep 2015		On the left side of the Instrument Cluster
TCAN001		After Sep 2015	X437	Below the Central Control Screen	Perform Diagnosis for Can related Systems
TCAN002		Sep 2015

Package List:

1set x Autel TESKIT Autel Tesla Diagnostic Adapter Cables
